MAP156 - USB Power outlets in instrument panel
Two USB Power Outlets installed in the cockpit instrument panel, as provisions for EFB charging.
The installation is comprised of:

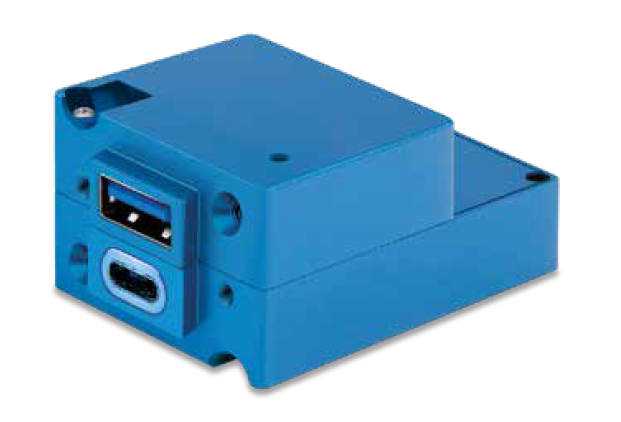

- 2 dual- USB True Blue power outlets
- Installation location – on each side of the instrument panel
- Output power: Up to 60W (for USB-C), up to 15W (for USB-A) - suitable for in-flight charging of most commercially available tablets
- In-built protection for short circuit, power surges, overload and over temperature
- Qualification of outlets: FAA TSO C71; EASA ETSO C71; RTCA DO-160G
- USB Power Outlets energised by a 28V DC electrical bus with sufficient load capacity
The modification includes (customer documents):
- Installation drawings
- Engineering order incl. references to supporting technical documentation
- Instructions for Continued Airworthiness
- Flight Manual Supplement
To request development and/or EASA approval of a modification or repair, please contact us.
