MAP039 – Centre Console Reconfiguration
The modification provides rearrangement of the control panels within the centre console of a number of 365N3 aircraft in order to:
- Standardise the centre console across the fleet
- Improve the HMI with the panels based on their role
- Make room for additional control panels

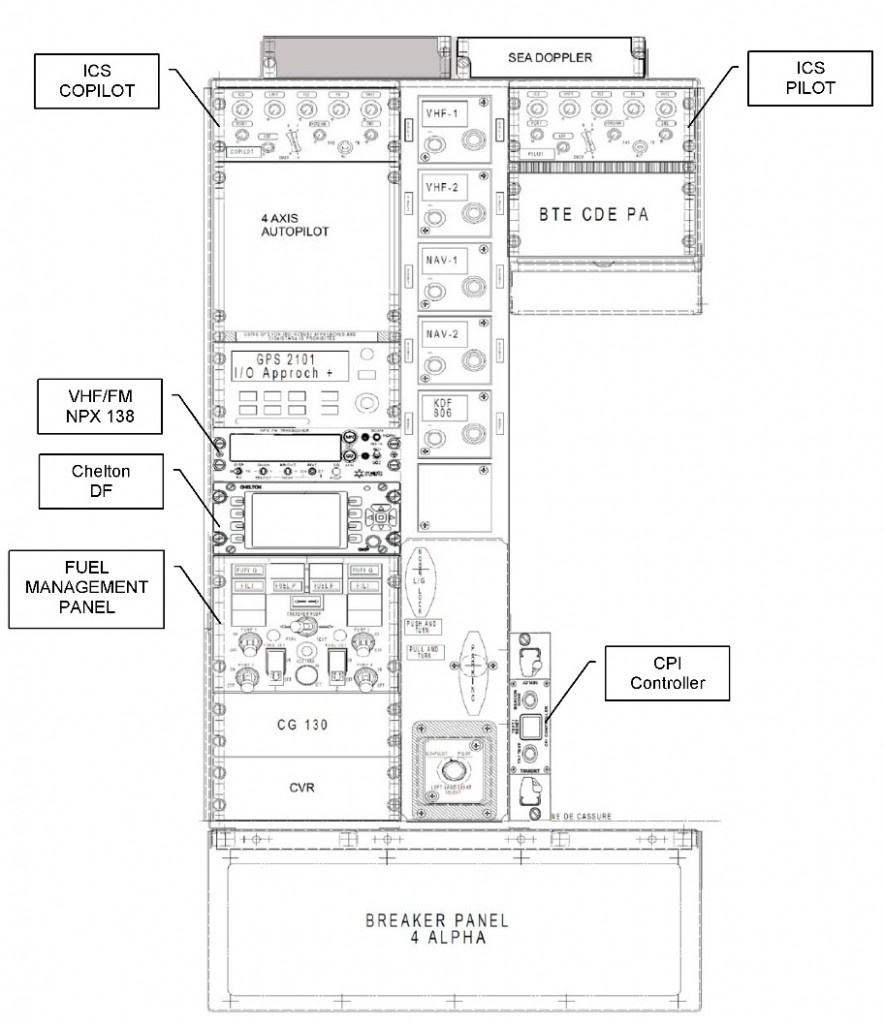

- Different layouts are applied depending on the configuration of the aircraft. An example can be seen below:
The modification includes (customer documents):
- Engineering order
- Flight Manual Supplement
To request development and/or EASA approval of a modification or repair, please contact us.
