MAP079 – HR Smith ADELT CPI Installation
To facilitate the installation and decrease the weight impact, the existing and no longer required Artex fixed automatic ELT is removed prior to installation of the HR Smith CPI (removal covered within the modification).

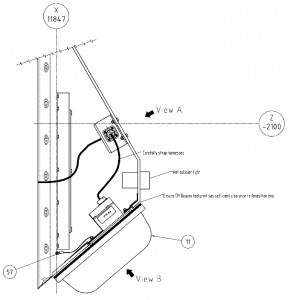

The modification covers the complete installation of a 503-16 HR Smith Automatic Deployable Emergency Locator Transmitter (ADELT) + Crash Position Indicator (CPI) to address a requirement for a CPI and ELT for offshore operations. The system is composed of seven main sub-assemblies. Each LRU is mounted on a suitable location ensuring access where required and taking into account the established practices of the TC holder, all relevant Service Bulletins and Airworthiness Directives and the Equipment Manufacturer’s recommendations.
The modification includes (customer documents):
- Mechanical installation drawings
- Mechanical manufacturing drawings (for brackets required)
- Wiring diagrams
- Engineering orders
- Instruction for Continued Airworthiness
- Flight Manual Supplements
To request development and/or EASA approval of a modification or repair, please contact us.
