MAP060 – HF removal

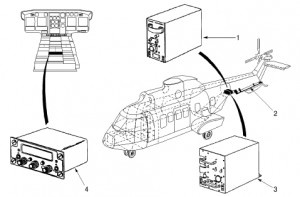

The modification provides instructions and approval for the removal of an existing HF 9100 radio system for the sake of reducing the overall weight and drag of the helicopter and extending the range / improving the fuel economy. The weight removed by the modification is in excess of 20kg, while retaining all wiring interconnection to allow simplified reconfiguration if required. The system is comprised of a:
- Control Unit (on the console)
- Receiver-Transmitter (in the tail boom)
- Antenna Coupler (next to the Receiver-Transmitter)

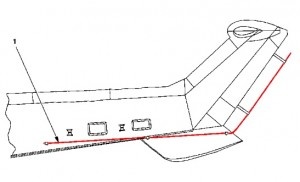

- Tube Antenna (along the tail boom)’
The modification includes (customer documents):
- Mechanical manufacturing drawings (for blanking plates required)
- Engineering order
To request development and/or EASA approval of a modification or repair, please contact us.
